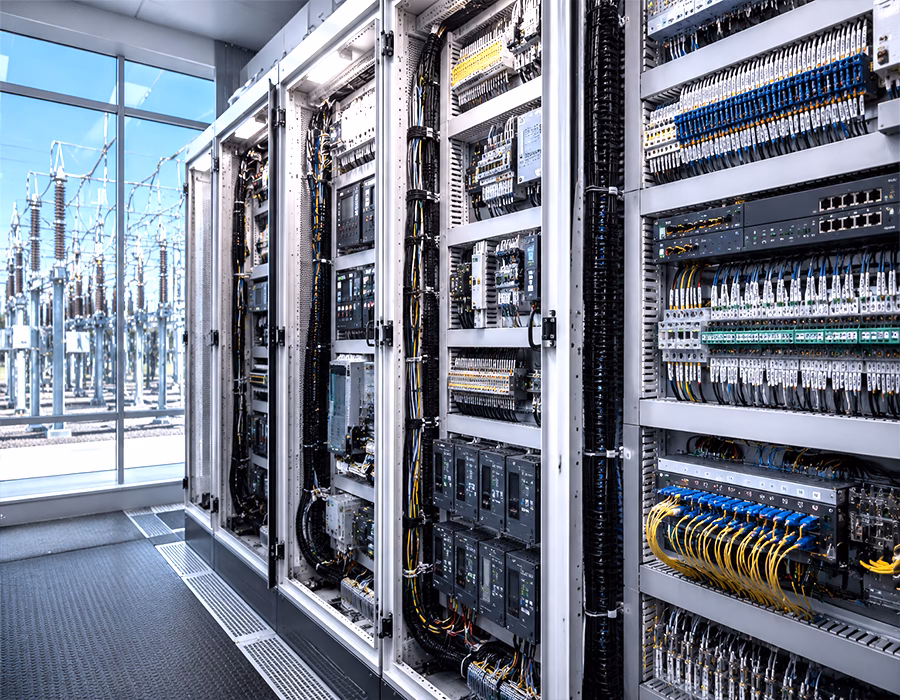

Built for the Chaos Inside a Substation Control House — Megawatts, Microvolts, and Lightning, All in One Cabinet
If you’re sourcing a custom wire harness for substation control panels, you already know the environment doesn’t forgive weak links. For example, low-voltage digital logic sits just inches away from high-voltage switchgear, capacitor banks, and enough EMI to scramble a weak signal in a heartbeat.
Here’s the real risk: one jumper with cheap insulation fails, and your protection relay goes blind. As a result, that’s not a minor fix — it’s a cascading grid fault or a transformer dropping offline, and now you’re explaining it to the utility.
That’s exactly why Romtronic builds every custom wire harness for substation environments to take that abuse and keep running. Specifically, we manufacture ruggedized internal wire harnesses, custom copper communication trunks, and multi-point terminal block layouts engineered to survive heavy electrical noise and keep substation logic running 24/7.
In addition, we bring 29 years of hands-on OEM and ODM contract manufacturing experience to the power utility sector. If you’re handling high-mix, low-volume (HMLV) automation deployments, we take the hassle out of your panel building. You can read more about our general capabilities on our custom wire harness manufacturing page, or jump straight to our Engineering Hub to start a project.
Consequently, you don’t have to manage a massive internal wiring team yourself. Send us your schematics, and we’ll deliver pre-bound, 100% verified assemblies straight to your shop floor.
What you get with every build:
- ISO 9001 Factory Validation — Every substation harness runs through our certified QMS before it ships, no exceptions. See our full certifications and qualifications for details.
- IPC-A-620 Class 3 Workmanship — Our crimps and branch wiring meet the highest reliability bar defined by IPC’s official workmanship standards, the industry benchmark for high-reliability electronics.
- 300% Layered Inspection — Post-crimp optical scan, high-voltage dielectric check, and a mechanical pull-test. Three separate gates before anything gets boxed.
- Flame & Ozone-Resistant Jacketing — Low-smoke, zero-halogen compounds that don’t crack under sustained heat or ozone exposure.
Why a Custom Wire Harness for Substation Panels Needs IPC-A-620 Class 3
Sloppy point-to-point wiring isn’t just ugly — it blocks airflow, traps heat, and turns a five-minute fix into a two-hour hunt. Therefore, we build pre-sorted wiring kits designed to drop straight onto your DIN rails, RTUs, and terminal blocks.
- Gas-Tight Crimp Metallurgy — Transformer vibration loosens cheap terminals over time. However, our automated crimp-force monitoring on every ring terminal and ferrule ensures a true cold weld, not a connection that slowly works itself loose.
- Low-Latency, Double-Shielded Data Links — Serial data, Modbus, and DNP3 traffic won’t drop packets when it’s wrapped in high-coverage tinned copper braid backed by foil. That’s how you keep telemetry clean during a switching event. (For protocol reference, see the official DNP3 specification.)
- Laser-Marked Branch Layouts — Every conductor gets alphanumeric tags every 20mm, so there’s zero guesswork on the line or in the field five years from now.
Material & Compliance Matrix for Substation-Grade Wiring
| Substation Enclosure Wiring | Material Solution | Why It Matters |
|---|---|---|
| Relay & CT/PT Measurement Circuits | UL 1015/UL 1283 heavy tinned copper, thick-wall flame-retardant PVC | Rated 600V–1000V at 105°C. Handles current transformer saturation spikes without failing. |
| RTU & SCADA Communication Links | High-flex, low-capacitance twisted pairs, 100% foil + drain wire | Blocks high-frequency switching noise from nearby breaker operations. |
| Panel Door Grounding Systems | Ultra-flexible, high-strand flat tinned copper braid | Shunts lightning surge current and static fields away from microprocessor cards. |
| Outdoor Yard Junction Boxes | Rugged PUR-jacketed multi-conductor runs, overmolded boots | Stands up to UV, ozone, and driving rain without swelling or cracking. |
Fixing the Real Engineering Problems in Substation Wiring
How Do You Stop Inductive Coupling from Breaker Switching?
Isolate the low-voltage lines in a shielded harness with 95%+ braid coverage, and ground it properly — that’s the short version.
Here’s what’s actually happening: when a high-voltage breaker opens or closes, it throws off a massive high-frequency EMI arc. If your SCADA or relay sensor lines are bundled in the same duct without real shielding, that arc induces a ghost voltage spike right on the processor pin. As a result, you get a false trip or a full logic reset. That’s why we build custom-shielded branch harnesses with an integrated tinned copper braid Faraday cage, grounding that noise out before it ever reaches your data lines.
Why Do Substation Terminal Connections Fail Over Time?
Transformer hum causes micro-fretting inside loose terminals, which oxidizes the contact and spikes resistance — that’s the root cause almost every time.
Substation yards run with a constant low-frequency hum from heavy transformer cores. Over months and years, this vibration shifts copper strands just enough to cause friction inside a loose terminal block. Consequently, the contact points oxidize, resistance climbs, and you start getting erratic readings you can’t explain. To prevent this, we build to IPC-A-620 Class 3 with calibrated pneumatic press tooling, so every termination is gas-tight from day one — no oxygen, no corrosion, no slow failure.
Common Questions About a Custom Wire Harness for Substation Panels
A: IPC-A-620 Class 3 is the standard to ask for on any substation, RTU, or protection relay harness. It’s the highest workmanship class in the IPC spec, and it covers crimp quality, wire prep, and solder termination for high-reliability electronics — exactly what a substation control panel needs.
A: High-flex, low-capacitance twisted pair cable with 100% foil shielding plus a drain wire is the go-to choice for SCADA and RTU links. It keeps Modbus and DNP3 traffic clean, even when it’s running near breaker-switching gear.
A: Yes — most false trips trace back to inductive coupling from nearby breaker switching. Specifically, a properly shielded harness with 95%+ braid coverage and correct grounding blocks that noise before it reaches the relay’s processor pin.
A: Tinned copper resists oxidation and corrosion far better than bare copper, which matters a lot in an environment with humidity, ozone, and constant vibration. As a result, it keeps contact resistance low over the harness’s full service life.
A: Send your 2D wiring prints, cabinet schematics, or BOM to our Engineering Hub, and our team will run a full DFM audit with a quote back within 24 hours.
Put Our Utility Interconnect Lab to Work
If you’re chasing an intermittent SCADA dropout, re-engineering a protection panel layout, or standing up a new smart grid build — this is exactly what we do. Additionally, if you’d like to explore related solutions, check out our custom cable assemblies or browse other industrial applications we support.
Simply send your BOM, drawings, or photos straight to our Engineering Hub. Our 12 wiring engineers will run a DFM audit and get you a clean quote within 24 hours, with expert feedback within 12.
