Premier Manufacturer
High-quality custom M8, M12, and M16 cables for industrial automation, robotics, sensors, and harsh environments.
Romtronic manufactures fully customizable M-series cable assemblies, built to meet your exact specifications. With in-house cutting, soldering, overmolding, and testing, we ensure fast delivery, reliability, and IP-rated performance.

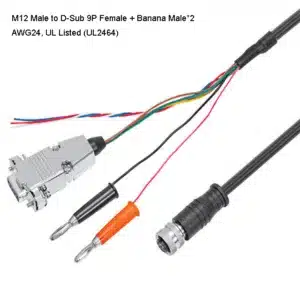

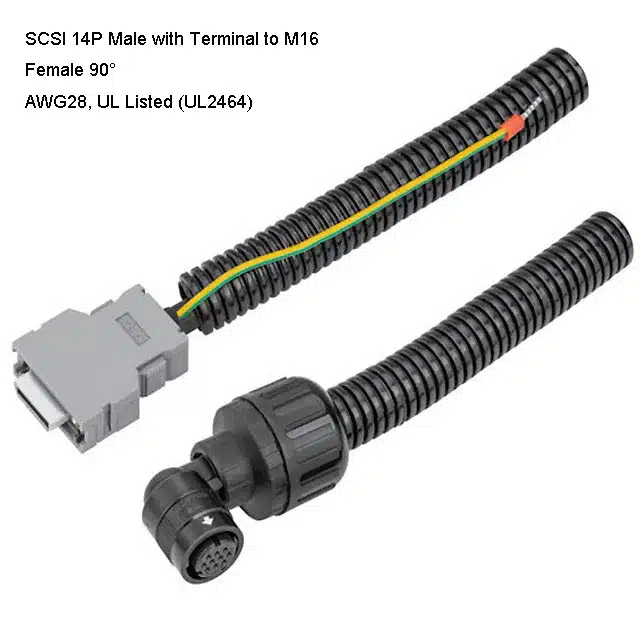

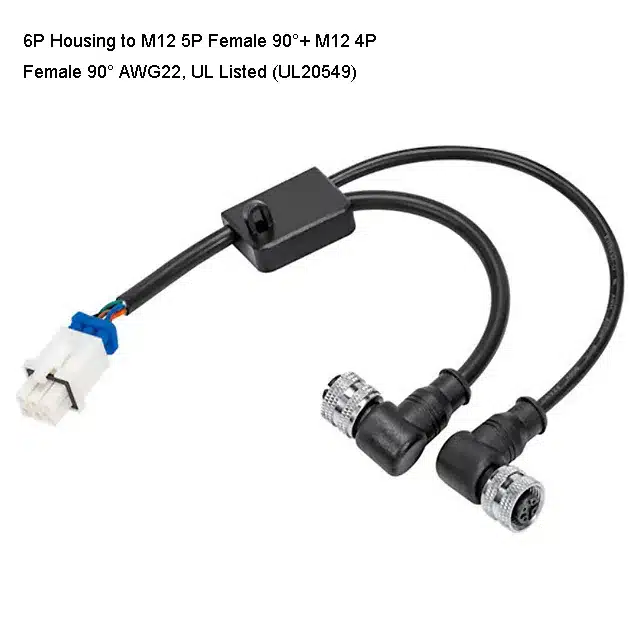

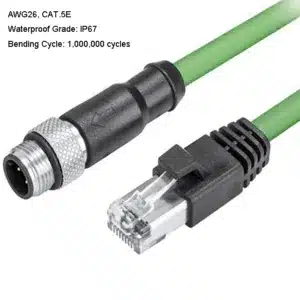

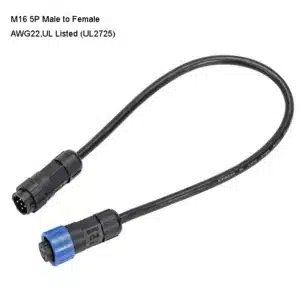

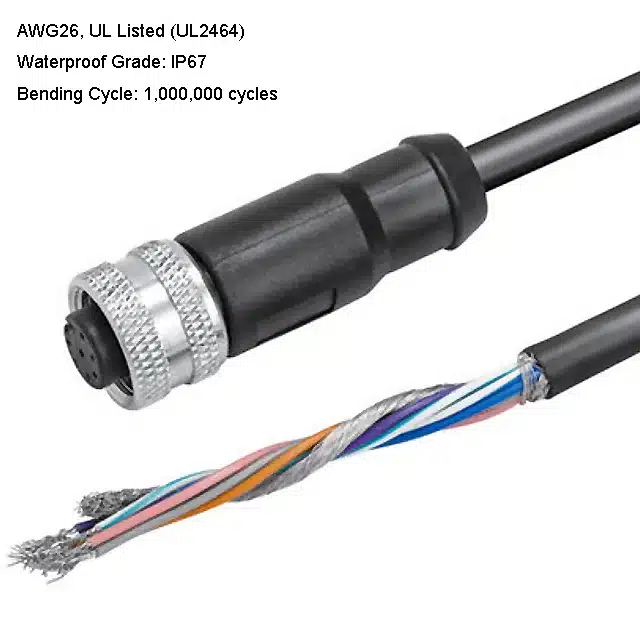

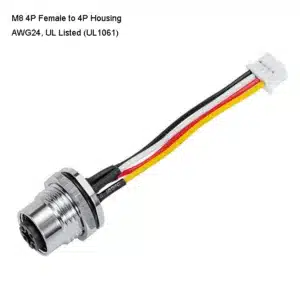

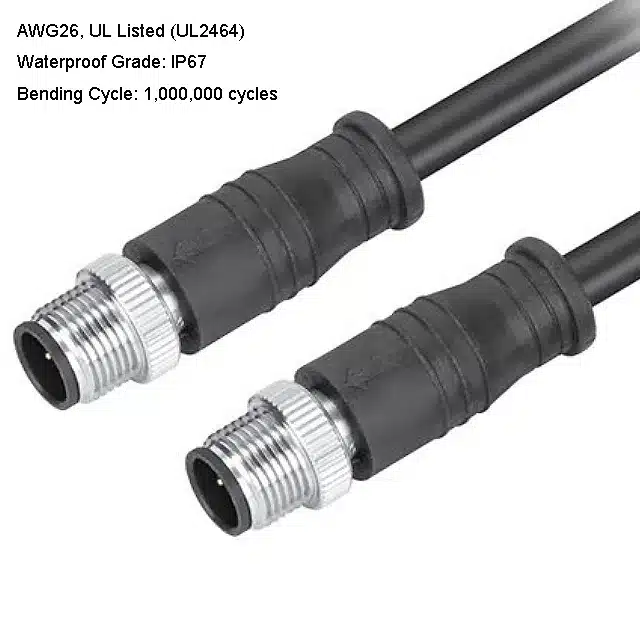

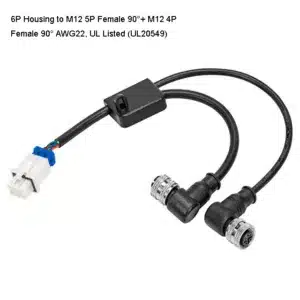

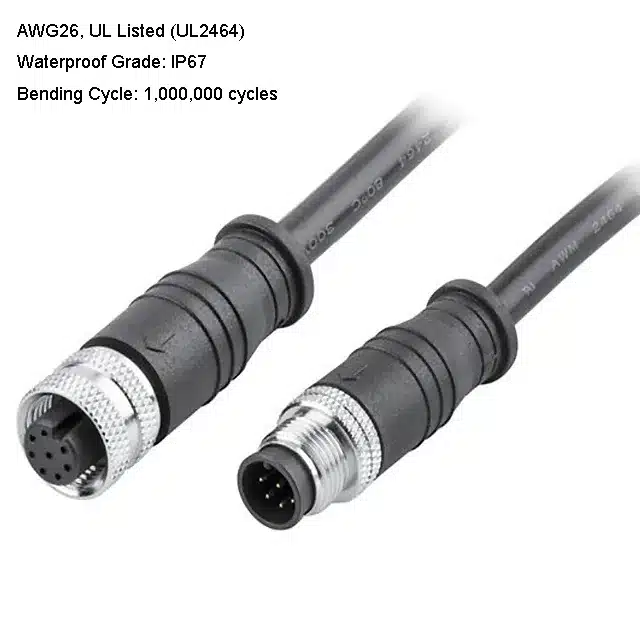

Our customized M8, M12 and M16 cable assemblies

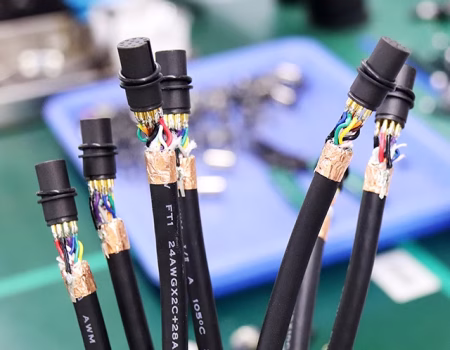

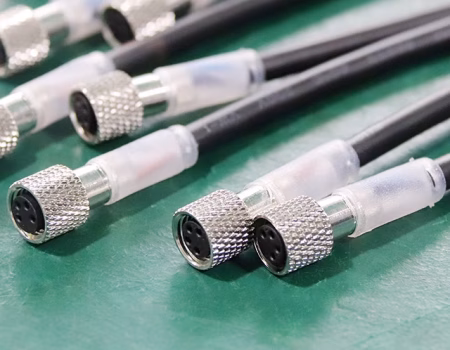

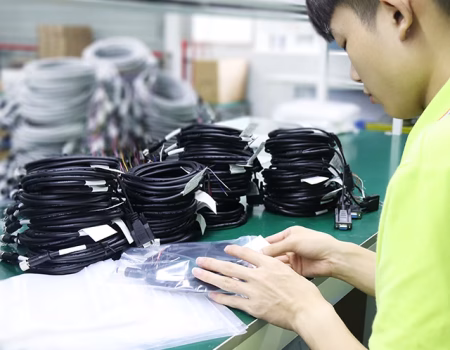

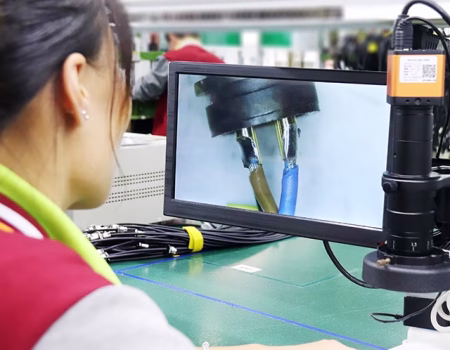

Our M8, M12 and M16 cable manufacturing process
M8 vs M12 vs M16 Connectors: Comparison
The table below summarizes key differences among M8, M12, and M16 connectors – important factors when specifying a custom cable assembly.
| Parameter | M8 Connectors | M12 Connectors | M16 Connectors |
|---|---|---|---|
| Connector Size | 8 mm thread diameter | 12 mm thread diameter | 16 mm thread diameter |
| Pin Count | Typically 3–8 pins (up to 13) | 3–12 pins common, up to 28 | 2–24 pins (common 4, 8, 12) |
| Typical Applications | Compact sensors and devices (tight spaces) | Industrial automation (sensors, Fieldbus, Ethernet) | High-current/high-voltage (motors, power distribution) |
| IP Rating (Waterproof) | Usually IP67 (some IP69K) | Usually IP67; can be IP68/IP69K | Typically IP67 (cable variants up to IP68) |
| Current/Voltage Rating | ~30–60 V, ~0.5–4 A (depends on pin count) | Up to ~250 V; commonly 4–12 A | Up to ~250 V; typically ≥16 A for power applications |
| Mounting Method | Cable connectors, panel/bulkhead and PCB mounts | Cable, panel-mount (straight/angled), bulkhead | Cable connectors and panel-mount (flange) versions |
| Coding Type | A-coded (standard for sensors) | A/B/C/D/X codes (for different fieldbus/Ethernet) | A-coded (power) or X-coded (10 GbE data) |
| Mechanical Lifespan | >100 mating cycles | ≈100–500 cycles (depending on style) | ≥500 cycles (often 1,000+) |
For example, M8 connectors are ideal for compact sensor links, while M12 connectors support larger industrial networks. M16 connectors handle high-power loads (e.g. motor control). All meet industry standards (IEC 61076-series) for form, fit, and protection.
Key Advantages of Our Custom Cable Assemblies
- Fully Customizable: Select any M8, M12, or M16 connector style, pin count, coding, and cable type to fit your design. Our cables are built to order with waterproof connectors.
- In-House Production: We perform all steps (cutting, stripping, soldering, overmolding, testing) under one roof, enabling fast turnaround (typically 10–15 business days).
- High Quality & Compliance: UL-certified options are available, with durable materials and tight IP sealing. Rigorous quality control (inspection and testing) ensures reliable, maintenance-free operation.
- Built for Industry: Our assemblies are rated for harsh environments (dust/water protection, wide temperature range) and reduce downtime in critical systems.
- Flexible Ordering: We accommodate small or large batch orders at competitive prices.
Whether you need sensor cables, industrial Ethernet leads, or power wiring, our custom M8/M12/M16 cable assemblies deliver the right balance of size, robustness, and performance. Contact us with your requirements for a custom solution or quote.

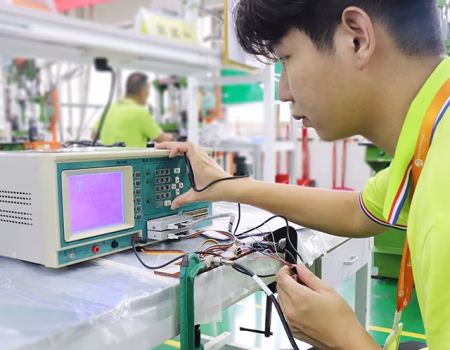

Engineering Assurance – Electrical Testing
Electrical testing is embedded into every Romtronic cable assembly program. From prototype to mass production, we apply structured electrical verification to ensure functional accuracy, electrical safety, and long-term reliability.
- 100% continuity and wiring validation
- Hi-pot and insulation resistance testing
- Resistance and voltage drop verification
- Custom functional electrical test development
Learn more about our Electrical Testing process
Frequently Asked Questions (FAQs)
Q1: What types of M-series connectors do you offer?
We customize M8, M12, and M16 circular connectors in various coding types (A-code, B-code, D-code, X-code, etc.), supporting both signal and power transmission.
Q2: Can you produce waterproof M8/M12/M16 cables?
Yes. We offer IP67 and IP68-rated waterproof designs, suitable for harsh environments such as industrial automation, transportation, and outdoor equipment.
Q3: Do you support custom pin configurations and cable assemblies?
Absolutely. We can manufacture 2 to 12-pin configurations with custom cable lengths, jacket materials (PVC, PUR, TPE), shielding, and overmolding options.
Q4: Are your M-series cables compatible with fieldbus or Ethernet systems?
Yes. Our M12 cables can be tailored for PROFIBUS, PROFINET, CANopen, EtherCAT, and other industrial communication protocols, ensuring stable signal integrity.
Q5: What industries commonly use your M8, M12, and M16 cable assemblies?
Our cables are widely used in industrial automation, robotics, sensors, transportation, LED lighting, and machinery requiring rugged and reliable circular connector solutions.
Get in Touch for Custom M8/M12/M16 Cable Solutions
Romtronic manufactures custom M8, M12, and M16 connector cables for industrial automation, sensors, actuators, robotics, and harsh-environment applications. We offer a wide range of connector types (A/B/D/X-coded), cable materials, and IP-rated overmolded options to meet your system requirements.
To request a quote or discuss your cable project, feel free to contact us through the form on this page or using the details below — our team will respond within 12 hours with expert support.
📧 Email: info@romtronic.com
📞 Phone: (+86) 199-2816-5824
Romtronic delivers rugged, high-quality M8/M12/M16 cable assemblies tailored for demanding industrial environments.
