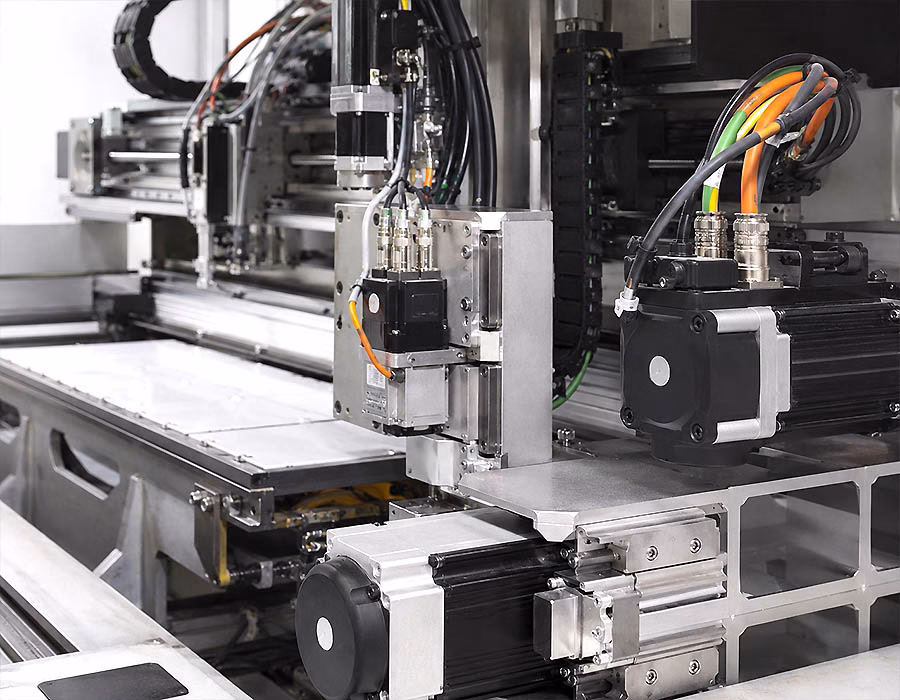

A Servo Motor Drive Cable Takes a Real Beating
If your machines handle rapid positioning, pick-and-place cycles, or high-torque acceleration, your servo motor drive cable is under constant stress. Unlike static factory wiring, motion control cable gets yanked, twisted, and whipped inside a tight drag chain track, cycle after cycle.
However, standard industrial wire just won’t hold up here. Under aggressive acceleration, cheap conductors quickly work-harden and snap. On top of that, the high-frequency PWM switching from modern drives throws off massive electromagnetic interference.
Without proper shielding, that noise bleeds straight into your encoder lines. As a result, you get catastrophic position drift, tracking errors, and sudden system shutdowns. That’s exactly why Romtronic builds custom power, feedback, and hybrid servo cables engineered to isolate heavy EMI while surviving millions of high-flex cycles.
Built for FANUC, Siemens, and Yaskawa Architectures
A faulty motion cable doesn’t just stop a motor. It halts your entire production line. Therefore, we design every servo motor drive cable to drop directly into existing FANUC, Siemens, Yaskawa, or custom controller architectures.
You can browse our broader capabilities on our custom wire harness manufacturing page, including our robotics wiring harness line. Or head straight to our Engineering Hub to start a project.
What you get with every build:
- ISO 9001 Factory Quality — Every servo cable runs through our certified quality management pipeline. See our full certifications and qualifications for details.
- IPC-A-620 Class 3 Specs — Every crimp and internal wire route meets the highest workmanship standard in the industry, covering crimp quality and termination reliability.
- 300% Layered Inspection — An optical sweep after termination, an automated insulation test, and a final pull-force check. Three gates, every build.
- Torsion-Hardened Alloy Strandings — Ultra-fine, high-strand copper and tinsel wire conductors slide smoothly inside the jacket, preventing internal friction and wire binding.
Precision Layouts for a Dynamic Servo Cable Assembly
Industrial motion happens in dirty, demanding places. That’s why we engineer every layer of a servo cable assembly to isolate noise and shrug off constant flexing.
- Dual-Shielded Noise Isolation — To protect weak feedback telemetry, we layer a 100% coverage aluminum-mylar foil with a high-density tinned copper braid mesh, over 95% coverage. This blocks PWM drive noise before it corrupts your position data.
- Hermetic Overmolded Connector Boots — We vertically inject-mold connector backshells with heavy-duty polyurethane. Consequently, splashing coolants, cutting oils, and dust particles never get inside the connector.
- Slick, Low-Friction Internal Wraps — Specialized PTFE or TPE internal wraps keep wire cores from catching or kinking during continuous multi-axis bending inside a drag chain.
Material & Motion Compliance Matrix for Servo Wiring
| Servo Sub-System Cable | Material Solution | Real-World Engineering Benefit |
|---|---|---|
| High-Current Power Feeds | Low-capacitance XLPE insulation with oil-resistant PUR jackets | Minimizes voltage drops over long runs and withstands harsh factory floor chemicals. |
| Absolute Encoder Feedback | Twisted-pair signal lines wrapped in a semi-conductive carbon layer | Bleeds off static charge and blocks high-frequency PWM drive cross-talk. |
| Dynamic Drag-Chain Tracks | Specialized slick, low-friction PTFE or TPE internal wraps | Prevents internal wire cores from catching or kinking during continuous bending. |
| Heavy-Duty Braking Circuits | Flame-retardant, high-temperature Teflon (FEP) insulated wire | Handles thermal spikes during rapid emergency braking and heavy deceleration. |
Fixing the Real Faults in Servo Motor Drive Systems
Why Does a Servo Encoder Lose Position Randomly?
Physical separation between power and feedback conductors stops it. That’s the short answer.
When 480V servo power lines run parallel to a 5V encoder feedback cable inside the same narrow drag chain, you’re asking for trouble. The massive electromagnetic field from the drive’s high-frequency switching induces noise on those delicate feedback lines. This shows up as skipped pulses, hunting behavior, or sudden tracking error faults on your controller.
We solve this with custom hybrid single-cable solutions (SCS) that embed physical, braided separation barriers right between the power and feedback pairs. As a result, your controller receives clean, uncorrupted data, so tracking accuracy stays locked in. For reference on motion protocol standards like CIP Motion, see ODVA’s official technical specifications.
Why Does Internal Copper Fracture in High-Speed Gantries?
Kevlar strength elements distributed through the bundle stop the fracturing. That’s the fix.
High-speed gantries subject internal wiring to relentless bending, pulling, and twisting. In standard harnesses, this constant mechanical stress causes internal copper strands to slowly fracture, leading to mysterious, intermittent power losses.
To prevent this hidden failure, we build every servo motor drive cable to strict IPC-A-620 Class 3 standards. Specifically, we integrate internal Kevlar strength elements and use premium high-flex materials, similar to the flex-life benchmarks referenced in IEEE’s motor and encoder standards work. This distributes mechanical tension evenly away from the termination joints, so your motion loops outlast standard factory setups.
Common Questions About Servo Motor Drive Cables
Electromagnetic interference from nearby high-frequency PWM power lines is the usual cause. Running power and feedback conductors too close together, without proper shielding, induces noise straight onto the encoder signal.
A single-cable solution (SCS) combines power and feedback conductors in one jacket with an internal separation barrier, saving space in the drag chain. Separate cables give more shielding flexibility but take up more room and add routing complexity.
Continuous bending and twisting inside a drag chain causes standard copper strands to work-harden and fracture over time. Cable built with fine-strand conductors and low-friction internal wraps resists this fatigue far longer.
Overmolded connector boots with heavy-duty polyurethane keep coolant, cutting oil, and dust out of the connector interface. This matters most on cables routed near CNC coolant lines or wash-down stations.
Send your 2D wiring schematics, motion prints, or BOM to our Engineering Hub. Our team runs a full DFM audit and gets a quote back within 24 hours.
Challenge Our Motion Interconnect Lab
High-dynamic automation leaves zero room for sloppy layouts, brittle jackets, or weak shields. Fighting intermittent positioning faults? Chasing cable track failures? Launching a new multi-axis robotics platform? Let’s optimize your architecture.
Take a look at our robotics wiring harness solutions if you’re sourcing for other motion control platforms too.
Send your 2D wiring schematics, motion prints, or BOM to our Engineering Hub. Our 12 wiring engineers will run a DFM audit and get you a clean quote within 24 hours, with expert feedback within 12.
