Whether you’re hauling gear on a multi-purpose utility trailer, towing an RV to a campsite, or launching a boat on a waterfront ramp, the trailer’s electrical system must stay dry and reliable. Outdoor trailers face rain, mud, salt spray, and constant vibration – all of which can cause ordinary wiring to short out or corrode.
In these challenging conditions, a waterproof wire harness is crucial for protecting lights, brakes, and signals. High-quality harnesses use durable, corrosion-resistant copper conductors and rugged weatherproof insulation. They are designed to withstand rain, snow, road debris, and extreme temperatures, ensuring the trailer’s electrical circuits remain intact.
Key Features of Reliable Trailer Harnesses
An excellent trailer wiring harness combines multiple protective features. In practice, look for:
- Durable, Corrosion-Resistant Materials: Conductors should be made of high-grade copper (often tin-plated), and the jacket should be made of weatherproof plastics (e.g., PVC, XLPE). Such materials resist rust and cracking, ensuring the wiring remains strong even in harsh outdoor conditions.
- Weatherproof, Sealed Design: The harness should prevent the entry of moisture and dust. Quality harnesses use IP-rated, sealed connectors or over-molded plugs (IP67 or higher). Injection-molded connector housings and rubber grommets block rain and road spray from reaching bare wires. This keeps circuits from shorting out or corroding.
- Secure, Locking Connectors: Pins and sockets that lock together (with screws, clamps, or snap-fit features) ensure stable, continuous contact, even under vibration. Good designs utilize strain reliefs and firmly crimped terminals to prevent connections from shaking loose during trailer movement.
- UV-Stable, Flame-Retardant Insulation: Harness jackets often include UV inhibitors to protect exposed trailers from sun damage. Low-smoke, halogen-free compounds are commonly used in high-quality harnesses to minimize toxic fumes in the event of damage. Overall, robust insulation prolongs lifespan in sunlight and extreme heat.
- Versatile, Plug-and-Play Compatibility: A reliable harness is made to match your trailer and tow vehicle. Whether it’s a simple 4-pin flat for a utility trailer or a 7-pin RV-style connector, the harness should plug right into the existing wiring without custom splicing. Many harnesses even include extra circuits (such as reverse lights, brake controllers, and auxiliary power) for specialty trailers.
Typical Challenges and Harnessing Solutions
Outdoor trailers face several environmental challenges. The table below summarizes how modern harnesses address each one:
| Environmental Challenge | Harness Design Feature |
|---|---|
| Water and moisture intrusion | IP-rated sealed connectors (often IP67+) (e.g. injection-molded housings with o-rings) to keep rain and splashes out. |
| UV/Sunlight exposure | UV-resistant cable jackets and insulations (with UV blockers or additives) to prevent cracking and degradation from sun. |
| Corrosive elements (salt, chemicals) | Tin-plated (marine-grade) copper conductors and corrosion-resistant terminals. Sealed junctions prevent salt spray from entering. |
| Vibration and abrasion | Reinforced sheathing (braided or spiral wrap) and strain reliefs. Locking connector mechanisms stop pins from working loose under road shock. |
This coordinated design ensures that trailers remain roadworthy even after repeated exposure to wet conditions or rough use. For example, a waterproof 7-pin RV-style plug may utilize a detachable compression nut and rubber gasket to prevent moisture from entering. Together with tinned wiring and heavy-duty insulation, the harness ensures that all trailer lighting and brakes remain functional in rain or off-road conditions.

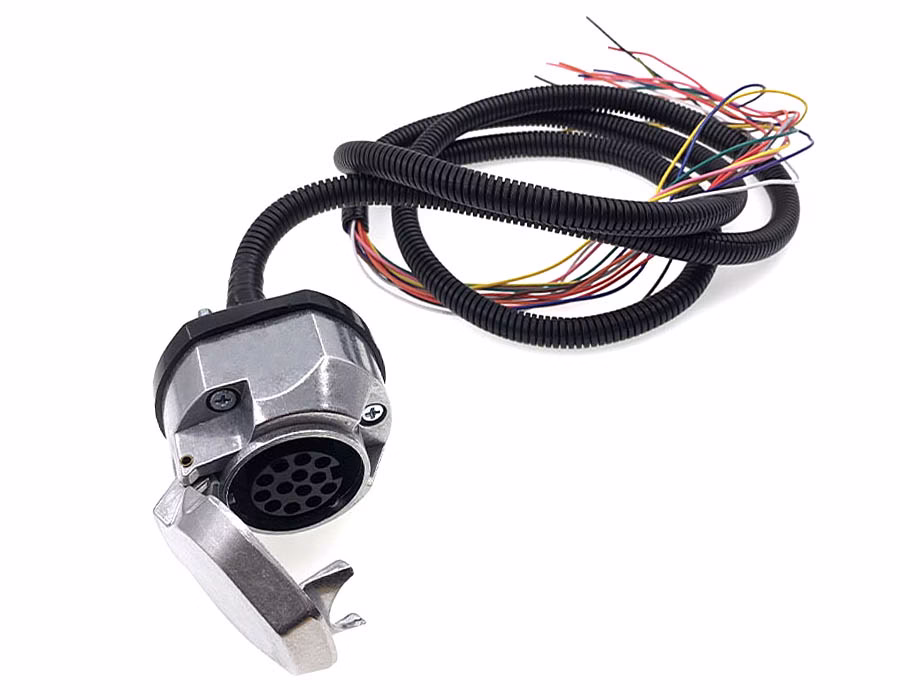

Multi-pin trailer connectors (like the 13-pin plug shown above) illustrate how sealed designs work. These plugs are often molded to fit precisely, with rubber grommets covering each pin cluster. Wires enter through a sealed gland or compression fitting, so no water seeps in. High-quality harnesses typically include such advanced connectors. Many also feature UV-blocking cable jackets and flame-retardant insulation to guard against the sun and heat. In short, every part of the harness – from the wire itself to the outer jacketing to the connectors – is chosen for rugged outdoor service.
Connector Types for Different Trailers
It helps to match the harness to your trailer’s connector type. Small utility trailers typically use a 4-way flat plug (simple for tail, stop, and turn signals), while RVs and large campers use a 7-way round or blade plug. Boat trailers in saltwater climates often use sealed 6-pin or 7-pin round connectors with IP67–IP68 ratings and tinned wiring to resist corrosion. Horse and heavy-duty trailers may also use 6-pin round or heavy-gauge 7-pin plugs. No matter the type, the key is the waterproofing features described above. Many off-the-shelf kits now come with plug-and-play capabilities for standard connectors, making installation fast while ensuring the gear remains protected in all weather conditions.
Romtronic’s Custom Waterproof Harness Solutions
As a leading wire harness manufacturer, Romtronic provides outdoor-rated, waterproof trailer harnesses designed for durability and performance. We use only premium materials, such as tin-plated copper wires and rubber-insulated conductors, and our connectors are molded to achieve IP67-level waterproof performance. Our marine and lighting wiring harnesses meet stringent standards (e.g., ABYC, ISO 10133, UL) for durability and reliability. Romtronic’s factory (established in 1997) offers full OEM/ODM capabilities, enabling us to customize trailer wiring harness length, pin layout, and connector type to meet your specific trailer requirements.
Our engineers also focus on UV and vibration protection. Many Romtronic outdoor harnesses feature UV-stable cable jackets and halogen-free, flame-retardant sheathing. Connectors often include protective gaskets or locking compression nuts to prevent dust and water from entering. To ensure reliability, every custom wire harness is thoroughly tested to meet IPC/WHMA-A-620 quality standards. In short, when you need a waterproof wire harness for an outdoor trailer application, Romtronic delivers a rugged, dependable solution on time and on budget.
Ready to upgrade your trailer wiring? Contact Romtronic today to discuss a custom design or request a quote. Our experienced team can help specify the proper IP-rated, UV-resistant wire harness for your trailer (whether it’s a flatbed cargo trailer, RV camper, boat trailer, or specialty utility trailer). With Romtronic’s waterproof harnesses, you’ll get reliable, long-lasting performance in any outdoor environment, backed by our factory’s 29+ years of interconnect experience and quality certifications.
