Do you feel like straight cables are secretly plotting to turn your workspace into chaos? Coil cables—also known as spiral cables or spiral-wound cables—were born to solve this very problem.
They extend to meet distance requirements when needed and neatly retract when idle.
If you work in automation, medical devices, or robotics, choosing the right custom coil cable assemblies for industrial automation or understanding how to select spiral cable assemblies for robotics and medical devices can significantly enhance your workflow.
For more insights into custom coil cable solutions, check out our Benefits of Custom Coil Cable Assemblies.
What Is a Coil Cable Assembly?

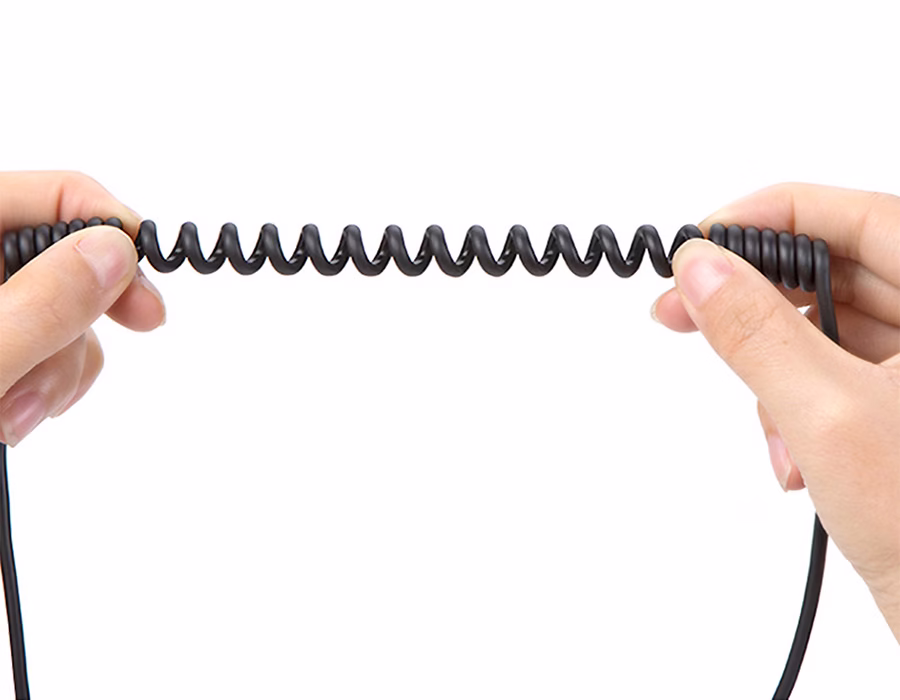

Spiral cables are spring-like wires and cables.
They extend when tensioned and retract when released, maintaining tidy and safe workspaces.
Their interior consists of fine twisted copper wires and flexible insulation—typically made of PVC, PUR, or TPE—capable of withstanding thousands of stretch cycles.
This built-in “memory” feature is key: the precision-engineered spring can repeatedly snap back into place instantly without causing stress damage to the internal wiring. To understand how Romtronic ensures reliability in production, see How Romtronic Builds Reliable Custom Coil Cable Assemblies.
Why Coil Cables Matter
- Compact and clutter-free.
Remains coiled when idle—no messy cable piles on desktops or behind robotic arms. - Flexible in motion.
Coiled cables bend, twist, and extend while maintaining electrical integrity. - Long-lasting.
Premium versions withstand tens of thousands of bend cycles. Romtronic testing shows industrial-grade PUR cables significantly outlast standard PVC cables in harsh automation environments.
When designing your solution, consider your system as a custom coil cable assembly for industrial automation, ensuring you can meet the unique needs of mobile production equipment. If your application involves robotics or medical devices, understanding how to select coil cable assemblies for these purposes is crucial.
For guidance on selecting the right components, refer to our How to Choose the Right Coil Cable Assembly – Buyer’s Guide.
Where You’ll Find Coil Cables
Once you start noticing them, they’re everywhere:
Communication phones, medical monitors, barcode scanners, stage lighting, truck trailers, and mechanical grippers.
- Medical field: ECG lead wires and hospital equipment.
- Industrial field: Sensor cables, conveyor belts, robotic automation.
- Automotive: Charging cables, trailer connectors.
- Retail: Anti-theft lanyards for handheld scanners.
- AV & Communications: Headphones and microphones.
When equipment requires freedom of movement but cannot tolerate tangled cables, spiral cables provide the perfect solution.
Types of Coil Cable Assemblies

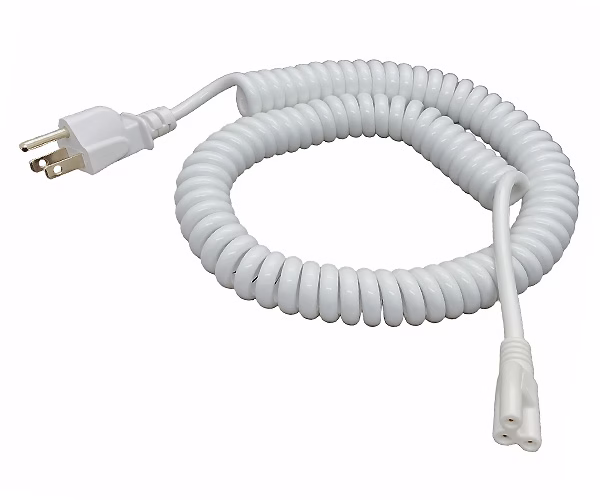

- Power Spiral Cables—Carry higher currents; feature thicker insulation and conductors.
- Data Spiral Cables — Transmit Ethernet, USB, or shielded signal lines.

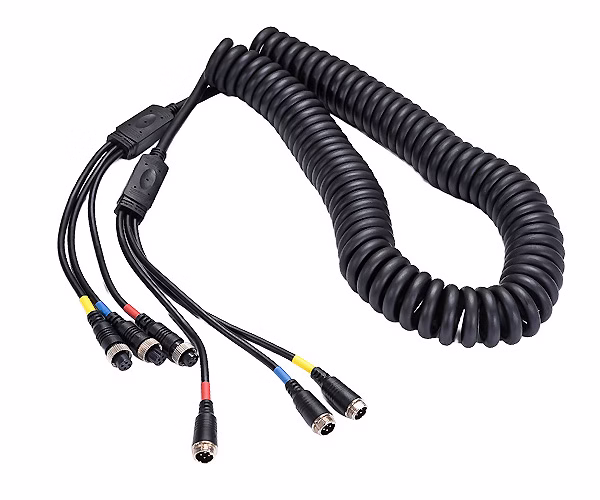

- Hybrid Cables — Integrate power and data into a single flexible spiral cable.
- Extension Cables — Retractable cables for telephones or tools.

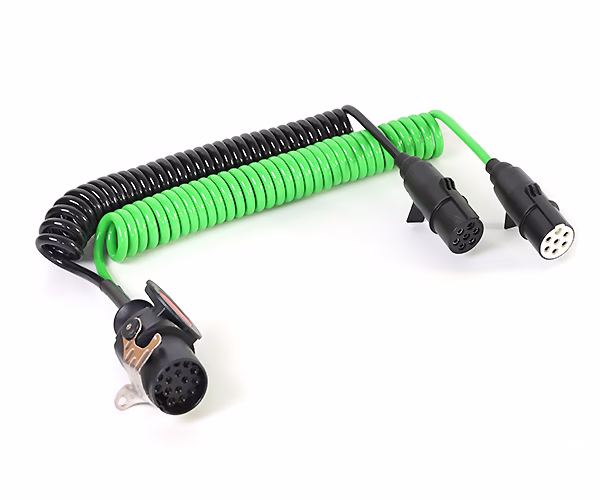

- Heavy-Duty Cables — Enhanced designs featuring oil resistance, UV resistance, or suitability for continuous motion environments.
Key Considerations
Choosing the proper custom coil cable assembly is about designing based on actual needs, not just length.
- Work Environment:
Indoors or outdoors? Clean labs or oily workshops? PVC is suitable for office or telecommunications environments; PUR or rubber is best suited for industrial applications. For true custom coil cable assemblies in industrial automation, environmental factors such as oil, dust, and frequent movement must be at the core of your specifications. - Extension Ratio:
The coil can stretch to 3.5 to 5 times its static length.PVC: ≈ 3.5:1, PUR: ≈ 4:1, and rubber: ≈ 5:1.
Avoid excessive stretching to prevent damage to the “elastic memory” property. - Conductor Type:
Tin-plated copper offers corrosion resistance; silver-plated copper offers optimal conductivity. - Jacket Material:
Determines flexibility, abrasion resistance, and environmental compatibility.
| Material | Stretch Ratio | Highlights |
|---|---|---|
| PVC | ~3.5:1 | Low cost, flexible, flame-retardant. Moderate elasticity. |
| PUR (Polyurethane) | ~4:1 | High elasticity, oil/chemical resistant, strong memory. |
| Rubber | ~5:1 | Excellent UV and abrasion resistance, longest coil life. |
- Connector Type:
Specify orientation—straight-through or tangential-outlet. Includes strain relief to alleviate tensile stress. - Cycle Life:
High-quality, industrial-grade coils can withstand over 100,000 stretch cycles for projects involving continuous flexing—request test data. For example, suppose your specifications relate to medical devices or robotics. In that case, understanding how to select spiral cable assemblies for these applications means insisting on detailed cycle life testing, thorough documentation, and rigorous sampling.
Practical Buying Tips from Romtronic
- Don’t judge someone solely based on their appearance.
We’ve seen customers focus solely on coil color and ignore material quality, ultimately regretting their decision when the PVC material hardened in cold weather. Always prioritize the jacket material based on your operating environment. - Request samples.
Romtronic typically customizes 1-10 samples for testing on your device before mass production. We also provide compatibility and flexibility test reports for prototype samples. - Consider the aspect ratio.
If you need a 3-meter reach, choose a coil rated for 4 meters, not a model that has already reached its maximum reach. - Specify connectors early.
Confirm all requirements before purchasing, including power interface, USB port, M8/M12 connector, and custom pinouts. - Verify compliance.
Medical or industrial equipment must be UL/CE certified, ISO 13485 certified, IEC 60601 certified, or have an IP rating (as per IEC 60529).
Frequently Asked Questions
A: This depends on the material, but a typical stretch ratio is 3.5:1 to 5:1. Do not exceed the rated stretch ratio.
A: Yes. Hybrid designs combine multiple conductors and shielding for bidirectional transmission.
A: PUR offers excellent elasticity and chemical resistance, making it ideal for automation or outdoor environments.
A: Ignoring temperature and oil. PVC coiled cables tend to harden or crack; in contrast, PUR maintains its elasticity for years.
Conclusion
Coil cable assemblies are not only aesthetically pleasing but also functional, safe, and reliable, designed for motion.
When you select based on material, environmental, and flexibility ratios, you get a product built to last.
At Romtronic, we design and manufacture coil cable assemblies for use in various applications, including automation, medical, and industrial systems worldwide.
If you need help with specific specifications (length, spacing, number of conductors, jacket material) or would like a quote for a custom coil cable assembly for industrial automation, please feel free to contact us, and we will walk you through the steps of selecting a coil cable assembly for robotics and medical devices.
