A standard cable can be considered a time bomb in the growing Industry 5.0 sector. When you deploy a 7-axis collaborative robot (cobot) for complex medical assembly or high-speed pick-and-place, you require not only the cable’s electrical conductivity but al also its mechanical durability.
Over 29 years in the precision manufacturing sector at Romtronic, we have seen many instances where the use of “low-cost” cabling leads to excessive downtime. If a cable fails after 5 million cycles in a system designed for 20 million cycles, your high-tech collaborative robot will become an expensive paperweight!
The “Math of Failure”: Why 20 Million Cycles is the Benchmark
One of the most common mistakes in procurement is failing to relate Flex Life to Bend Radius. We at HMLV (high-mix low-volume) emphasize to our clients that bend radius and cycle life are mathematically related.
If your cable is rated for 20 million cycles at 10x OD (Outer Diameter), but your robot’s J3 axis forces the cable to bend, that lifespan doesn’t just drop—it doesn’t.
The Physics of Stress
Maximum Theoretical Bending Strain Formula:
Strain (%) = (d / 2R) × 100
- R: Bend Radius (Measured to the central axis of the cable)
- d: Cable Outer Diameter (OD)
When the 7th axis introduces redundant motion, the cable experiences simultaneous tension, compression, and torsion. To move beyond 20 Million Cycles, the engineering must shift from standard copper to micro-strand alloy science.
The AECC Framework: Engineering the “Nervous System” Following
Following the AECC (A “curacy, Engineering, Compliance, Consistency) model, we ensure every assembly survives the transition from the lab to the factory floor.
1. IEC 60228 Class 6+ Conductors
Standard Class 5 conductors are too brittle for 7-axis movement. We utilize Class 6 Super-Flex conductors, featuring oxygen-free copper (OFC) strands as fine as 0.05mm to 0.08mm. This “bundle-within-bundles” geometry allows individual strands to slide past each other, dissipating heat and mechanical stress.
2. Torsion-Rated DNA (+/- 180 deg/m)
While traditional drag-chain cables handle linear motion, cobots require 3D flexibility. Our robotic wire harnesses are built with a specialized pitch length and PTFE (Teflon) tape buffering to ensure the internal cores don’t “corkscrew” underdon’tc “nstant tw “sting of the J4-J6 wrist joints.
3. Material Selection: The PUR Advantage
For our Dongguan-based manufacturing partners and global OEMs, we typically recommend Halogen-Free PUR (Polyurethane) jackets:
- Durability: 3–5x the abrasion resistance of PVC.

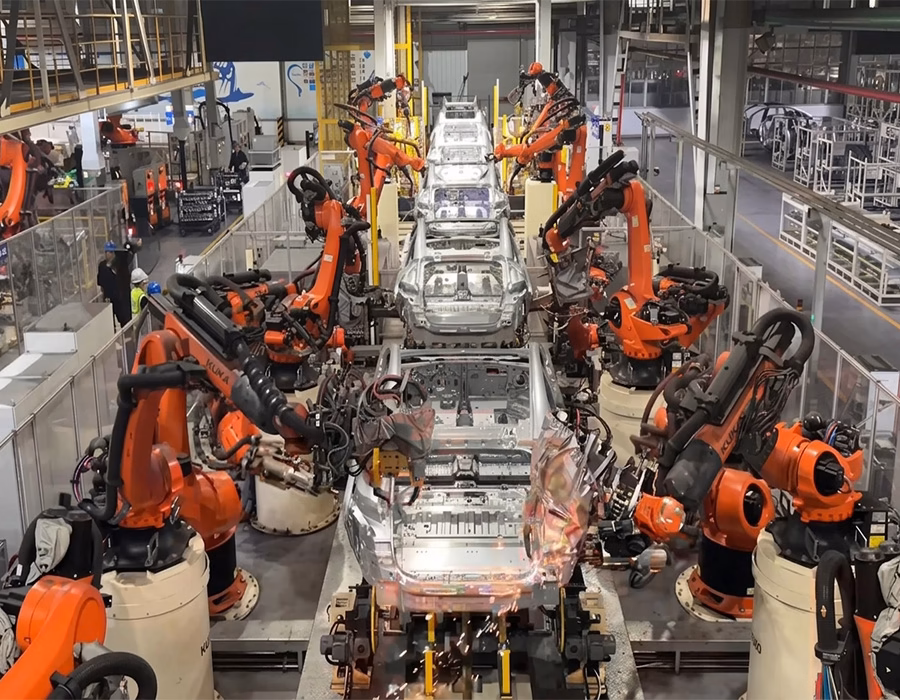

- Chemical Resistance: Essential in automotive environments with constant exposure to cooling oils.
- Weight Reduction: PUR allows for thinner, tougher walls, reducing the “drag” on collaborative” joins.” s.
Why “Data Sheet Specs” Can Be Misleading
Rom “ronic is not just a manufacturer but also a consultant. One of the most common failures we are seeing today is a customer selecting a cable based on the 20-million-cycle headline, only for it to fail at 14 months.
The most common cause of this type of failure is the home-position trap. Engineers tend to measure the cable’s bend radius in the robot’s home position. Therobot’s most damaging stress occurs at the outer limits of the joint travel envelope, when the J3 axis is fully extended. Our engineering team audits these custom-built cable assemblies to ensure they are designed with respect to the worst-case kinematic path rather than the most design-friendly one.
The Romtronic Edge: 29 Years of Precision
As an HMLV Specialist, we understand that no two robotic applications are identical. Whether you need Medical Grade Cable Solutions for a surgical cobot or ruggedized links for a 7-axis welding arm, we provide:
- 100% Electrical Continuity Testing: Zero-defect threshold before shipping.
- Custom Shielding: High-density braiding (>85% coverage) to eliminate EMI in motor-heavy environments.
- Rapid Prototyping: Transitioning from design to OEM/ODM production without the typical 12-week lead times.
Conclusion: Don’t Let the Weakest Link Break Your ROI
In 7-axis robotics, the cable isn’t a commodity; its performance enables Engineering for 20 million+ cycles, which is an insurance policy against unplanned downtime.
