Choosing the correct battery cable size is crucial for the performance and safety of your electrical system. The size of the cable used for a car stereo or marine audio system directly affects its performance and reliability. This guide will take an excellent approach to help you choose the right cable, covering everything from what your cable specs need to how much voltage drop should be considered.

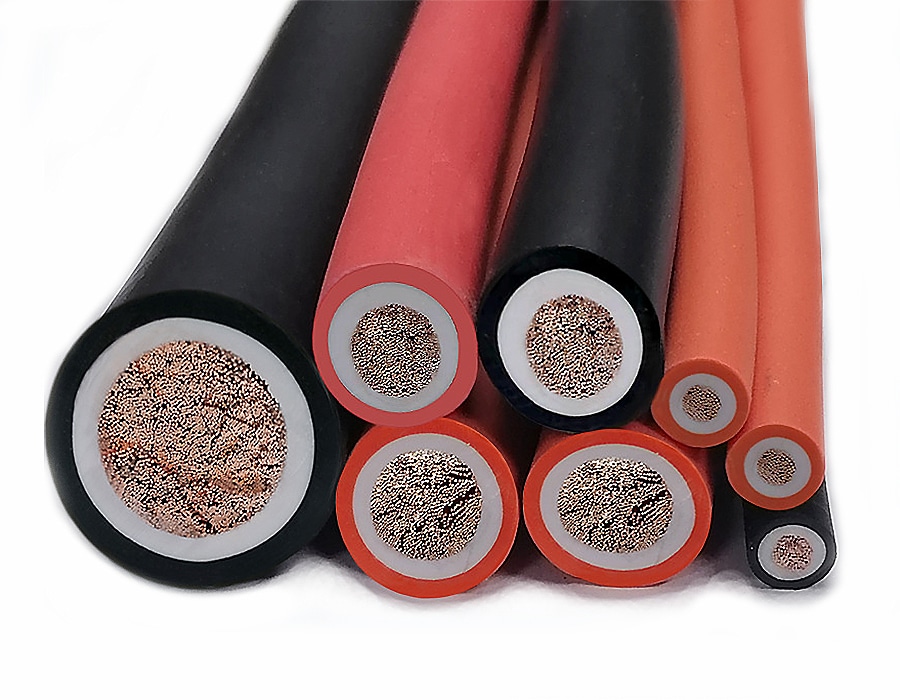

Battery Cable Size Explained
Understand Electrical Current and Resistance
Amperes (A) measure the flow of electrical charge through a circuit. When working with custom lithium-ion battery packs, it’s essential to match the current levels to the specific needs of these systems. Resistance measures how much a material opposes current flow, and high resistance in cables can lead to power loss as heat. To keep things running efficiently, choose cables with low resistance.
Ampacity Rating
Ampacity is the maximum amount of current that can be carried on a given cable while staying within its temperature rating. Specifying cables with an ampacity rating above the system’s maximum current requirement is necessary to prevent these future issues.
Voltage Drop
When current is utilised through a cable and flows through it, the voltage between the source of electricity and its destination drops. Excessive voltage drop can harm the performance of your electrical systems. Use cables as short as practicable; in the worst-case scenario, the most oversized cable will limit the voltage.
Factors to Consider
Electrical System Requirements
Feed all the devices to determine the Total Current requirement. Assess the power demand of every device. Versatile vehicles and pontoon sizes have various force requirements depending on the number of electrical segments installed. Accordingly, choose your battery cable size.
Cable Length
Higher resistance in longer cables results in more significant voltage drops. Keeping cable lengths minimum is extremely important for systems with critical power requirements.
Cable Material
Since copper is an excellent conductor, the cables are often made of this material. However, in this case, aluminum cables are lighter and cheaper. Weigh the advantages and disadvantages of each material according to your characteristic requirements.
Application: Calculate the Size of the Cable
Example Scenario
- System Voltage: 12 volts.
- Total Current Required: 100 Amperes.
- Positive and Negative cables 10ft each (20 feet).
Look at the supplied Battery Cable amperage ability Chart:
| Current (Amps) | 6 Ga. | 4 Ga. | 2 Ga. | 1 Ga. | 1/0 Ga. | 2/0 Ga. | 3/0 Ga. | 4/0 Ga. |
|---|---|---|---|---|---|---|---|---|
| 50 | 11.8 ft | 18.8 ft | 29.8 ft | 37.7 ft | 47.5 ft | 60 ft | 75.6 ft | 95.2 ft |
| 100 | 5.9 ft | 9.4 ft | 14.9 ft | 18.9 ft | 23.8 ft | 30 ft | 37.8 ft | 47.6 ft |
| 150 | 4.4 ft | 6.3 ft | 9.9 ft | 12.6 ft | 15.9 ft | 20 ft | 25.2 ft | 31.7 ft |
| 200 | 2.9 ft | 4.7 ft | 7.4 ft | 9.4 ft | 11.9 ft | 15 ft | 18.9 ft | 23.8 ft |
| 300 | 2.2 ft | 3.1 ft | 4.9 ft | 6.3 ft | 7.9 ft | 10 ft | 12.6 ft | 15.8 ft |
Then you can calculate a total current of 100 amps and total cable length = 20 feet; we have:
- 2/0 Gauge Cable supports up to 30 feet at 100 amps with less than 2% voltage drop.
How to Choose the Cable Material and Type
Common Types:
- Battery Cable: SAE-rated, thermoplastic PVC insulation, 50 volts; rated for 85-105°C.
- SGX battery cable features improved insulation, enhanced heat resistance, and increased abrasion resistance.
- Marine Battery Cable – Suitable for damp areas and rated for higher temperatures. Must self-extinguish.
- OFC (Oxygen Free Copper)- 99.95%, more expensive, no real electrical advantage.
- CCA (Copper Clad Aluminium): This aluminum wire has a copper coating, and its conductivity is lower than that of other copper items, so its thickness should be greater.
Key Recommendations
- For Automotive Applications: Automotive applications use SGT or SGX cables as rated by the SAE.
- For Marine Applications: Marine-rated cables.
Never use soldering cable, OFC, or CCA for automotive.
Application-specific cable size
- Accessory leads, low-power alternators, starter trigger wires, 10-gauge.
- 8 Gauge: Accessory leads and low-power alternators.
- 6-Gauge: Accessory leads, most stock alternators, and battery cables for small engines.
- 4 Gauge: Accessory leads, alternator wiring (up to 160A), automotive booster cables.
- Small 4-cylinder or 6-cylinder engines, high-power stereo speakers, and booster cables.
- 1 Gauge: Large 6-cylinder and small V8 engines, high-power accessories (large stereo systems), and aftermarket alternators.
- 1/0 Gauge: Huge 6 Cylinder, High Performance V6 (3 batteries), stock V8 engines.
- 2/0 Gauge: Engines that are difficult to crank, such as those in large RV power converters.
- 3/0 and 4/0 Gauge: Huge marine, diesel engines, high power alt-energy battery banks.
Measuring Battery Cable Size
Please follow the steps below if you have an extra battery cable but do not know its size.
- Prepare a Vernier Caliper:
- For measuring the diameter of the cable.
- Expose the Conductor
- Remove the short insulation piece from the cable’s end and strip the leads.
- Measure the Diameter
- Now, take the caliper, keeping it perpendicular to the cable’s surface, and gently close it. Pinch both sides evenly where your measurement line is marked.
- Determine the Cross-sectional Area, A
- The formula to determine the cross-sectional area of a conductor with its diameter is A = ( π/4) x d^2. 10mm battery cables are considered relatively small, for example.
- Go to the Wire Gauge Table
- You can then use the cross-sectional area to compare to an AWG table by finding the closest size.
Sizes for Common Battery Cables in mm:
| AWG Size | Cross-sectional Area (mm²) | Current Carrying Capacity (Amperes) |
|---|---|---|
| 6 Ga | 13.3 | 37 |
| 4 Ga | 21.2 | 60 |
| 2 Ga | 33.6 | 94 |
| 1/0 Ga | 53.5 | 150 |
| 2/0 Ga | 67.4 | 190 |
| 3/0 Ga | 85.0 | 239 |
| 4/0 Ga | 107.2 | 302 |
Why are battery cables so thick?
Current Carrying Capacity
Heavier gauge wires deliver more current flow at lower resistances (less voltage drop) and send power more efficiently.
Heat Dissipation
A larger area of the surface means less chance of the insulation being burnt or ignited.
Strength and Durability
The thicker cables, less subject to wear and tear, will be more resistant in the event of physical stress.
Safety Considerations
A thicker cable also means less risk of an electrical fire or a short circuit, as you are much more capable of handling higher fault currents, which would result in the cabling burning and melting away.
Conclusion
Correct Sizing of Wiring to Battery Plan for Both Performance and Safety. Refer to the battery cable size chart to check the current capacity and length of cables, taking into account voltage drop, to determine the best option. Correct sizing will allow the best power transmission, a more extensive battery lifespan, and protection against all sorts of electric demons. For an easy selection, we recommend using the services of a manufacturer already well-known as Romtronic.
Following these guidelines will keep your vehicle or vessel’s electrical system working smoothly and go a long way toward keeping you safe, not to mention headache-free on the road or in the bay.
Key Takeaways
- Energy transfer in electronics is a critical process, and battery cables play a crucial role in facilitating it.
- More cables are in the terminal box, which can confuse people, but correct cable sizing is crucial for a system’s performance and safety.
- They include the capacity, cable or wire run length, and voltage drop.
- Thicker cables enable larger currents, improved heat dissipation, and enhanced longevity.
- Use charts and tools to check if you need a bigger cable size.
For more assistance or customised quality battery cables, contact Romtronic for a one-stop shop and reliable products that meet safety standards.
