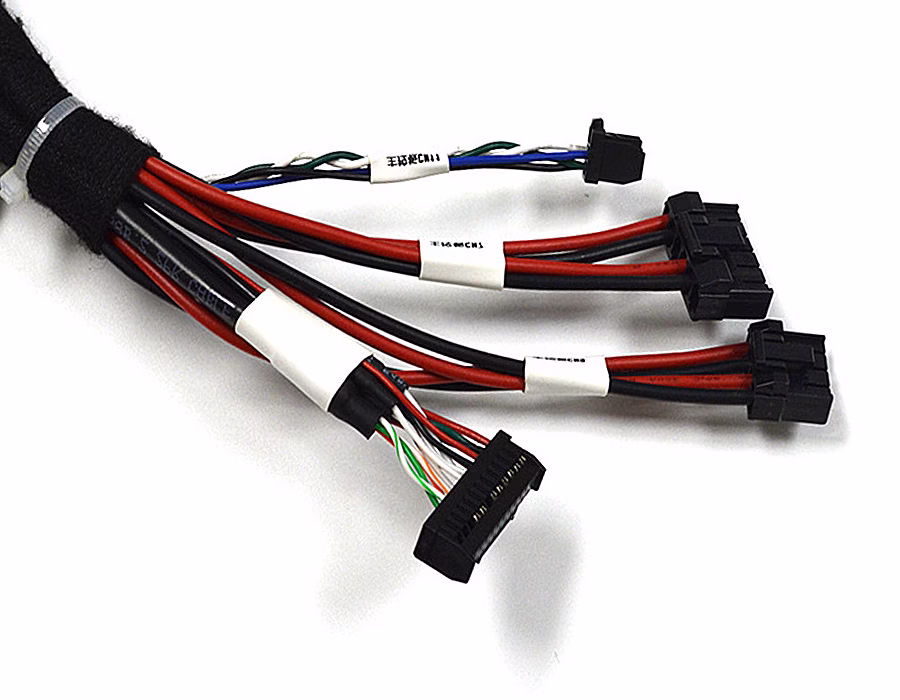

Robotic systems rely on complex cable bundles to transmit power and data between moving parts. A robot’s wire harness, similar to its nervous system, organizes and protects power, signal, and communication cables by bundling dozens of conductors. In high-volume manufacturing, specialized harnesses are essential.
They’re tailored to your machine’s specific configuration and motion range, passing through joints and arms with no loose wires or tangles. This precision design ensures that every motor, sensor, and controller remains linked during repetitive cycles, reducing downtime and maintenance issues.
Standard wires are insufficient for dynamic robots; thus, custom harnesses are necessary. When bent hundreds of times, commercially available cords break easily. Instead, robotics harnesses employ high-flex, abrasion-resistant cables with customized strain relief. These are designed with reinforced insulation and service loops to allow for motion at each joint.
For example, standard wires in a bespoke assembly are frequently constructed of copper or aluminum, covered in PVC or polyurethane, and wrapped in braided shields. This rugged design can withstand constant bending and is resistant to chemicals, heat, and electromagnetic noise in the plant.
In brief, a well-designed harness is the unsung hero that keeps a robot functioning smoothly – if it fails, the whole machine can fail.
Key Features of Custom Robot Wire Harnesses
Each custom robot wire harness is tailored to meet stringent industrial specifications. Common features include:
- High-flex conductors: Stranded copper or special alloys that bend thousands (even millions) of times.
- Durable jacketing: Tough outer jackets (PVC, TPU, etc.) or overmolding that withstands abrasion, oil, and heat.
- EMI Shielding: Braided or foil shields around signal wires to prevent interference from nearby welders or motors.
- Precision connectors: Circular, rectangular, or sealed connectors (M8, M12, RJ45, etc.) chosen for repeated plug/unplug cycles.
- Custom lengths & gauges: Cables are cut and routed to fit your robot’s exact shape, eliminating excess slack or tension.
These features ensure that power and data flow continuously via robotic arms and controllers. A robot arm harness, for example, may combine servo power lines, Ethernet data pairs, and encoder cables into a single assembly for increased drag-chain durability.
🔧 Need robot wire harnesses built for real industrial performance?
Romtronic delivers custom wiring solutions engineered for high-flex motion, extreme temperatures, and EMI protection — tailored exactly to your robot’s configuration.
📩 Contact our engineering team now for a free consultation & prototype design →
Industrial Robot Arms and Automation
Industrial robot arms, such as those used for welding or painting, swing and pivot continually in production plants. Custom harnesses for these robots must bend at each joint while remaining compact within the arm’s exterior.
Engineers, for example, create a harness with pre-formed curves and service loops to allow for unfettered movement without snagging. High-flex cables in the bundle enable thousands of cycles, while strain relief at each joint minimizes premature wear.
In many cases, bespoke sleeving or cable carriers help the harness pass securely through the arm structure. This personalized method prevents tangled cables and ensures smooth action, ultimately enhancing line uptime.
In one common application, a carmaker’s assembly line robot employs a harness with enhanced shielding to withstand sparks and heat in a welding cell. As a result, the robot dashes and experiences fewer wiring faults.
In contrast, employing a generic cable bundle here would result in cuts or electromagnetic interference with sensors. Customizing the harness (including fire-resistant materials and snug routing) addresses these issues right away.
Collaborative Robots (Cobots)
Collaborative robots share space with humans; thus, their harnesses must be compact and safe. Cobots often utilize smaller, lighter cable bundles compared to bulkier industrial arms. In practice, we construct these harnesses to accommodate the cobot’s constrained arm proportions while avoiding pinch areas.
Quick-disconnect connectors are also included, allowing maintenance personnel to quickly switch cobots or rearrange work cells as needed. Although smaller in size, cobot harnesses still use high-flex cabling and shielding to withstand repeated cycles. The goal is the same: to cleanly organize power and signal paths so that the robot remains reliable and safe to operate with.
Automated Guided Vehicles (AGVs) and Mobile Robots
Automated mobile robots and AGVs move materials through warehouses and factories, continually turning and lifting. Torsion-resistant, tough harnesses are required for these vehicles due to the high-stress environment.
For example, a specialized AGV harness could include drag-chain cabling designed to twist in a coil or use a slip ring, as well as oil-resistant jackets suitable for floor-cleaning robots. Drag chain & torsion-resistant cables are ideal for robotic joints, conveyors, and mobile equipment. This means your AGV may rotate its wheels or elevate shelves without the wires becoming kinked or stretched.
Because AGVs frequently use Ethernet and sensor networks, bespoke harnesses incorporate communication connections with shielding to ensure that data from barcode scanners or LIDAR is not affected by motor noise. Downtime caused by wire fatigue is considerably minimized when each harness is designed to fit the vehicle’s wheelbase and load.
🤖 Looking for wiring harnesses that match your AGVs, Cobots, or robot arms perfectly?
Take advantage of Romtronic’s custom engineering — from selecting flex-rated conductors to designing strain-relief and connectors that fit your robot’s motion profile.
📞 Request your free quote & technical layout today →
Warehouse and Motion Control Systems
Beyond individual robots, harnesses are used in pick-and-place machines, packaging cells, and innovative conveyors throughout the factory. These systems require wires that are specific to each machine’s shape. For example, high-speed sorting robots may require flat-flex cables with small bend radii, but a stock picker may use a combination of power wires and pneumatic lines in a single assembly.
The following table highlights typical automation cases and custom harness solutions:
| Application | Harness Challenges | Custom Solution Example |
|---|---|---|
| Industrial Robot Arm (welding, etc.) | Continuous bending at joints; sparks/heat exposure. | High-flex, flame-retardant cable bundles; extra shielding for welding cells. |
| Collaborative Robot (Cobot) | Space constraints; frequent reconfiguration. | Slim multi-conductor cable with quick-release connectors; built-in strain relief. |
| AGVs/Mobile Robots | Torsion during turns; harsh floor conditions. | Drag-chain rated cables with torsion sheath; sealed connectors for dust/oil. |
| Pick-and-Place/Packaging Machines | High-cycle flex; EMI from servo drives. | Flat flex or round cables with braided EMI shields; custom service loops to absorb motion. |
| Factory Automation (Conveyors, etc.) | Vibration; exposure to chemicals or high temps. | Ruggedized wire jackets (PUR/PVC); chemical-resistant insulation and enhanced shielding. |
Performance can be significantly enhanced with the correct harness. BizLink, for instance, claims that its high-performance flat cables have a lifespan of 150 million bend cycles.
Frequently Asked Questions
A: It bundles and protects the power and signal wires that connect a robot’s components. Instead of loose connections, the harness combines everything into a single unit, allowing power and data to flow smoothly to each motor, sensor, and controller.
A: Standard cables aren’t designed for rapid movement. A robot harness is composed of specialized, high-flex cables and strain reliefs specifically designed to accommodate the robot’s range of motion. This keeps cables from breaking as the robot bends or twists. Harnesses also add extra shielding and fire-resistant materials that generic cables lack, which is crucial in industrial environments.
A: Absolutely. Each robot model typically requires its own unique harness design. Manufacturers use your wiring schematic and robot specifications to design a harness that fits exactly. They ensure safe bend radii and select appropriate connectors for each junction. The result is a plug-and-play system that works seamlessly with your machine.
Summary
Custom wire harness solutions are critical to the reliability of industrial robotics. By designing cables and connectors particularly for each robot or automated system, you can achieve higher uptime, easier maintenance, and safer operations. A bespoke harness ensures that welding arms, cobots, AGVs, and factory conveyors are all connected correctly. When properly designed (flexible conductors, insulation, and durable jacketing), these assemblies outperform off-the-shelf cables in severe production environments.
