Electromagnetic interference (EMI) can silently corrupt serial data on RS-232 links. In noisy industrial or office environments – such as those with motors, power lines, and fluorescent lights – stray EMI “radiated noise” can cause delayed signals or data loss. RS-232 is a single-ended interface (one wire vs. ground), so it’s naturally less immune to noise than differential buses.
In fact, RS-232 cables “can be susceptible to electromagnetic interference (EMI) and radio frequency interference (RFI), which can cause signal degradation or loss,” according to industry sources. The good news is that clever cable design (twisted conductors, shields, filters) can keep those interruptions at bay.
Good RS-232 cables use twisted wires and shielding. Twisting the conductors reduces the effect of external noise, while low‑capacitance insulation helps preserve signal shape. The most effective strategy is metal shielding around the bundle. RS-232/422/485 cables are equipped with an overall foil shielding layer and a braided copper layer to “resist radiated or conducted electromagnetic interference (EMI). The foil completely wraps the cable (100% coverage), blocking high-frequency noise, while a woven copper braid protects against low-frequency interference and durability. In combination, these layers “maximize shielding effectiveness across the frequency spectrum”.

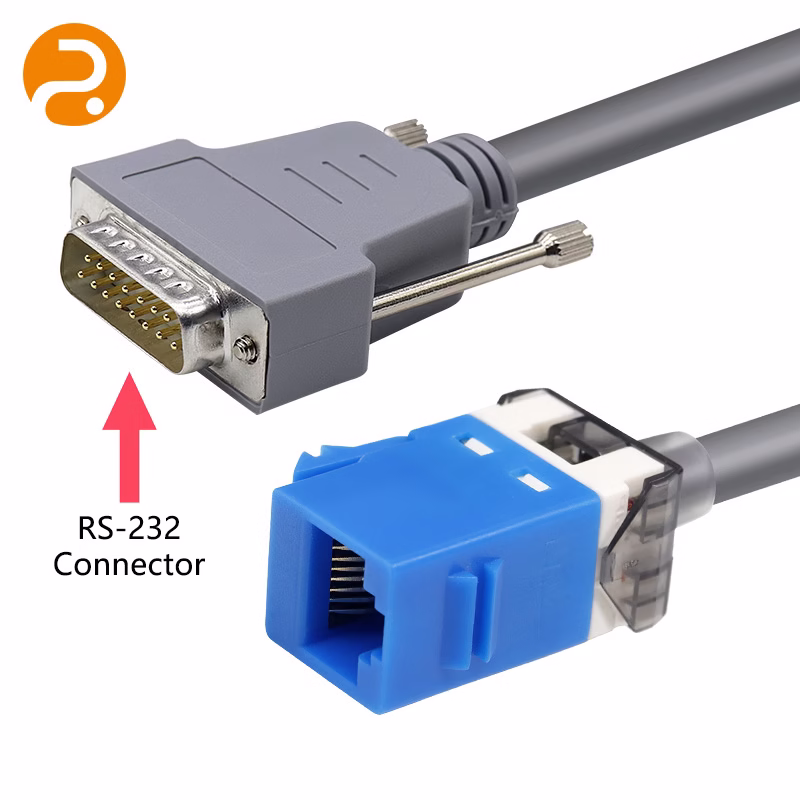

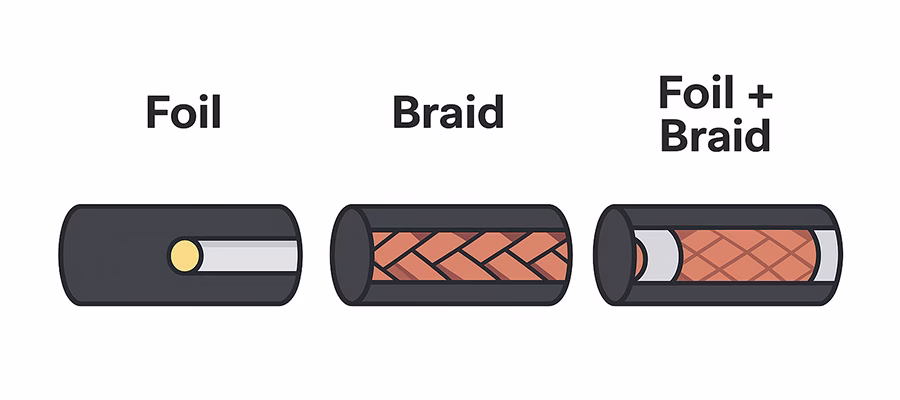

Shielding Types: Foil vs. Braid vs. Combo
Shielding comes in a few flavors, and each has strengths:
| Shielding Type | Description | Best For |
|---|---|---|
| Foil (aluminum) | Thin metal wrap, 100% coverage | High-frequency noise; flexibility; light weight |
| Braided copper | Woven copper mesh (~80–85% coverage) | Low-frequency EMI; mechanical strength; rugged use |
| Foil + Braid | Both foil and braid layers (multi-shield) | Broad-spectrum EMI; harsh industrial or high-density data environments |
By itself, a foil shield gives perfect coverage but is fragile; a braid is robust but usually not full‑coverage. That’s why many “industrial‑strength” RS-232 cables use both. The foil layer acts as a 100% effective barrier to RF noise, while the copper braid handles lower-frequency spikes and adds strength. In practice, a multi‑shielded cable is ideal when you need rock‑solid EMI immunity.
It’s also worth noting cable connectors and housings. High-quality RS-232 cables often feature metal connector shells or hoods that extend the shield all the way up to the mating port. For example, some DB9 serial cables advertise “aluminum foil shield for noise protection” and even “metal EMI/RFI hoods” on the connectors. In short: choose fully shielded cables with metal backshells or hoods whenever EMI is a concern.
📌 Looking for reliable EMI-shielded RS-232 cables?
Romtronic offers high-quality RS-232 cables with foil + braid shielding, metal connector shells, and ferrite components to ensure stable performance even in harsh industrial environments.
👉 Get expert advice and request a custom quote →
Grounding and Installation Best Practices
Even the best shield can’t help if it isn’t grounded. Industry guidelines stress that an RS-232 cable’s shield should be grounded at both ends. Tying the shield to the chassis or earth ground lets it carry away interference (acting like a “sponge” for noise) instead of allowing that noise to influence the signal conductor. (In some exceptional cases, one-end grounding is suggested to avoid ground loops, but in general, both-ends grounding gives maximum protection.)
Beyond grounding, simple wiring practices help too. Avoid running serial cables in parallel with high-voltage lines whenever possible; distance helps mitigate the risk. If you must cross a power cable, do so at a right angle to minimize coupling. For very noisy sites, adding ferrite components is common: many RS-232 cable assemblies include ferrite “clamps” or bead cores around the cable near the connectors to suppress high-frequency spikes. These ferrites act as common-mode chokes, choking off RF energy on the shield.
In fact, medical‑grade and industrial RS-232 cables often list a “Ferrite Clamp for better EMI suppression” right in their spec sheet.
To summarize, here are some key practices:
- Use shielded, low-capacitance cables. A properly shielded RS-232 cable (preferably foil and braid) is the first line of defense.
- Ground the shield. Tie the cable’s shield to the chassis/earth at both ends to drain away noise.
- Add ferrites or filters. Clamps or bead filters near connectors can block high-frequency EMI on long runs.
- Follow spec limits. Use shorter cable lengths for high baud rates and run cable away from known noise sources.
By treating EMI early in your cable design – through twisting, shielding, grounding, and filtering – you prevent headaches later.
| Technique | Benefit |
|---|---|
| Twisted conductor pairs | Cancels some magnetic pickup naturally |
| Foil + braid shielding | Blocks broad-spectrum EMI |
| Ground shield on chassis | Carries away noise current, prevents coupling |
| Ferrite cores / chokes | Filters high-frequency spikes on cable |
| Metal connector hoods | Extends shielding through the connector (no “leak”) |
📌 Need a tailored EMI-protected cable solution?
Our engineering team specializes in designing shielded cable assemblies that meet your exact EMI protection requirements—from short serial links to rugged industrial networks.
👉 Contact us today for fast support and samples →
FAQ – EMI Protection in RS-232 Cables
In immaculate environments (short runs, low speed), unshielded may work. But unshielded serial cables offer no EMI defense. Any nearby noise source can couple into the single-ended RS-232 line. In practice, shielded twisted-pair cables are strongly preferred whenever reliable data is needed.
Some installers ground only at one end to avoid ground loops in long runs. However, short RS-232 links usually benefit most from grounding both ends, allowing the shield to sink interference along its entire length. In other words, unless you have a specific loop problem, ground at both ends as recommended.
Yes. Many vendors sell “EMI-protected” RS-232 cables with extra shielding, braided armor, or built-in ferrites. These often cost more but are justified in noisy settings. Look for wires explicitly labeled as “shielded” or “EMI/RFI-protected.” They might mention foil tape, braid, and grounded metal hoods in their specs.
Ground loops occur if different ground potentials introduce noise currents. Proper shielding and grounding practices are your first line of defense. A grounded shield and, if needed, isolation devices (like optical isolators or isolating transformers) can neutralize loop noise. The key is to ensure the shield carries unwanted current, not your signal line.
Implementing these EMI protections usually solves mysterious serial problems. By the end of the day, your RS-232 link will carry precise, clean data – even in electrically “noisy” environments.
