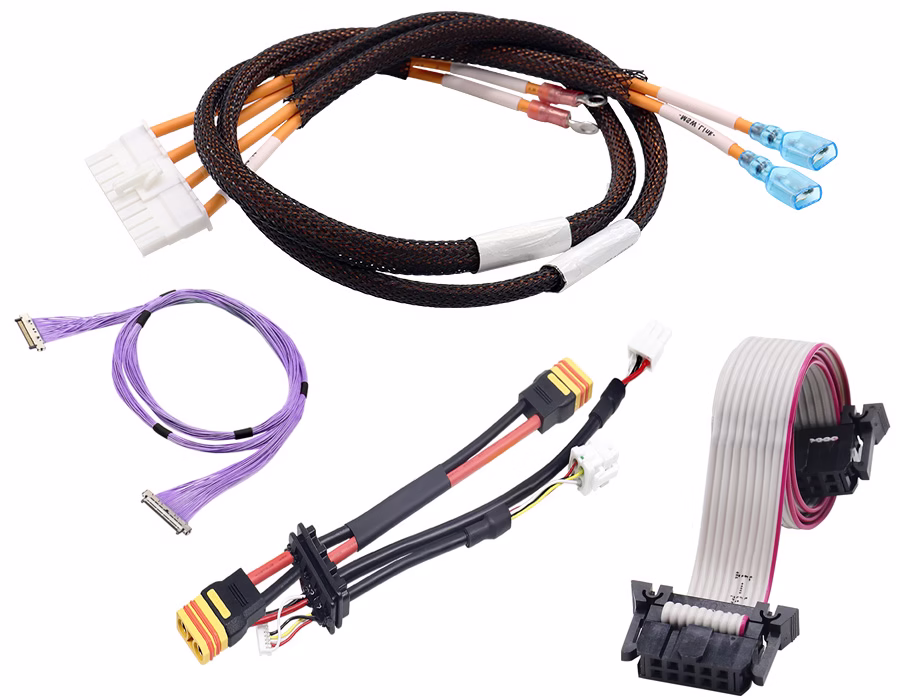

A robot wire harness, also known as a robot cable assembly, is akin to the robot’s nervous system, bundling dozens or hundreds of individual wires into a secure package that enables the machine to move and sense reliably. To get power and signals from control units to motors, sensors, and end-effectors, robots use a complex network of cables and connectors.
Suppose you’ve ever seen a robot arm in action. In that case, you’ll notice that all those cables snaking through the joints aren’t random: they form a carefully designed harness that carries electrical power, data, and control signals throughout the machine. Without this harness, you’d have a tangle of loose wires prone to breaks and interference. In other words, a robot wire harness is an engineered cable bundle that keeps every part of the robot connected and coordinated.
Every robot wire harness consists of multiple conductors (typically copper or aluminum wires) along with insulation, shielding, and a protective jacket. These wires and cables are gathered and routed to connect the robot’s power supply, controls, sensors, and actuators.
For example, Romtronic’s custom robot wire harness solutions are tailored to each robot’s configuration and mobility range. The harness transports power (to drive motors), signal lines (for sensors and control), and data wires (to provide feedback). In essence, it’s a custom cable assembly that exactly fits a robot’s shape and motion, allowing each joint and component to communicate as intended.
🔧 Looking to upgrade your robot’s wiring system for better performance?
Romtronic delivers fully customized robot wire harness solutions designed to boost reliability, flexibility, and long-term durability in demanding automation environments.
👉 Get a quick quote from our engineering team →
Why Robot Wire Harnesses Are Critical for Robotics
Wire harnesses for robots are crucial because they have a direct impact on the robot’s performance, safety, and dependability. A well-designed harness keeps everything tidy and secure, preventing wires from snagging, bending too far, or wearing out due to repeated motion.
Harnesses typically use flexible, abrasion-resistant cables and specialized insulation to endure frequent bending and stretching. A well-designed harness relieves strain at each robot joint and offers slack reserves to prevent wires from stretching during arm movement.
It also entails using fire-resistant and EMI-shielded materials to avoid electrical failures and noise in industrial settings. Harnesses transport delicate signals; therefore, electromagnetic interference from nearby welders or motors can be disastrous if not properly shielded.
In brief, the wire harness is the unsung hero that keeps the robot functioning properly. If the harness fails, the entire robot may fail; hence, engineers consider it one of the most crucial components.
Engineers testing a robotic arm rely on durable, well-designed harnesses to keep power and data moving smoothly. In practice, a robust wire harness enables the robot to move swiftly, respond accurately, and operate continuously without unexpected downtime.
For example, in an assembly line where a robot picks and inserts parts thousands of times each day, a harness designed for high-flex performance (with strengthened insulation and shielding) will survive significantly longer than a typical cable bundle. In comparison, a substandard wiring assembly may wear out within a few hundred cycles, resulting in errors and costly maintenance. Manufacturers maintain the machine’s safety, efficiency, and longevity by employing specialized harnesses explicitly designed for the robot.
Key Features of Robot Wire Harnesses
Robot wire harnesses share many standard design features that make them ideal for automation:
- Flexible Conductors: High-conductivity copper or aluminum wires with bigger cross-sections transmit power and signals with low loss. These conductors are frequently stranded or finely packed to bend easily across robot joints.
- Durable Insulation: Each wire is coated with insulating materials, including PVC, polyethylene (PE), or silicone. These layers protect against moisture, chemicals, and heat in severe production conditions while also preventing short circuits.
- Protective Jacketing: The entire bundle is encased in an extra jacket (made of PVC, polyurethane, or specialty polymers) to prevent abrasion and crushing during the robot’s movement.
- Shielding and EMI Protection: To decrease electromagnetic interference, many harnesses use aluminum foil or braided mesh shields around signal cables. This ensures that sensor signals remain clean even when strong motors or welding machines are close.
- Specialized Connectors: At the endpoints and breakpoints, the harness utilizes robust connectors (circular, rectangular, or latch-style) designed for repeated plug-and-unplug operations. For example, circular connections are frequently used to connect rotating joints, whereas sealed rectangular connectors are used to connect control modules.
- Custom Configurations: Each harness is designed to fit your individual requirements. Lengths, gauges, and routing are all carefully tuned to minimize strain and ensure a perfect fit for the robot’s shape and range of motion. This keeps slack from tangling and wires from pulling tight in extreme positions.
These design elements make robot wire harnesses lightweight and robust. They can withstand millions of motions and still transmit correct messages. A well-designed harness may even have built-in test points or overmolds to facilitate diagnosis and replacement.
In a nutshell, it’s a high-performance cable system made up of quality components (copper conductors, flame-retardant insulation, and robust connectors) that have been manufactured to stringent specifications.
⚡ Want to minimize downtime and maximize robot efficiency?
Our high-flex, abrasion-resistant harnesses are engineered to handle extreme bending, vibration, and heat while keeping your production line running smoothly.
👉 Talk to our experts about your project needs →
Applications and Benefits
Robot wiring harnesses are ubiquitous in the automation industry. They power and control industrial arms on automobile assembly lines, pick-and-place robots in electronics manufacturers, and even collaborative robots (cobots) that work alongside people. In all circumstances, the harness must allow the robot to move freely while keeping the cables safe. For example, a cobot’s arm might spin 360° continually; therefore, its harness will require twist-rated, torsion-resistant cables.
In high-speed welding cells, harnesses feature extra flame-retardant layers to handle sparks and heat. Harnesses are used in mobile robots (AGVs and drones) to connect batteries, drives, and sensors in a compact, vibration-proof bundle.
Beyond the industrial, wire harnesses are also crucial in robotic research and service robots. Medical robots utilize ultra-clean, insulated harnesses to ensure patient safety. Pre-engineered harness kits enable factories to expedite the assembly and maintenance process. Custom robot wire harnesses provide numerous benefits, including reduced downtime, simplified troubleshooting, and increased safety.
By having all wires neatly wrapped and labeled, engineers can easily isolate issues. Furthermore, a well-designed harness can make the robot quieter and more precise by reducing signal crosstalk.
Frequently Asked Questions
A: It bundles and protects all of the power and signal wires that connect a robot’s parts. Instead of unsecured wires, the harness organizes and secures everything, allowing power and data to flow to each motor, sensor, and controller.
A: Standard cables are not intended for the tremendous motion of robots. Robot harnesses utilize unique high-flex cables that account for the robot’s range of motion, ensuring that wires do not break when the robot is bent or twisted. They also incorporate the additional shielding and fire-resistant materials required in industrial environments.
A: Absolutely. Each robot model frequently requires a custom harness design and length. Manufacturers such as Romtronic use your wiring diagram to create a harness that fits perfectly, retaining bend radii and picking the appropriate connections for each joint.
A: Standard material is copper or aluminum conductors with PVC or silicone insulation. Many harnesses include braided shields over essential lines. The outer jacket is often constructed of stiff PVC or polyurethane. These selections ensure that the harness can withstand vibrations, chemicals, and temperature extremes.
A: Regular inspections are essential. Verify that the harness is not pinched and that all connectors are securely fastened. In use, avoid sudden bends that exceed the rated bend radius and keep the harness clear of moving objects. If properly engineered, regular maintenance and cleanings (to prevent the accumulation of dust and oil) will keep the harness and robot functioning well for years.
Each of these considerations highlights why a robot wire harness is more than just a collection of wires; it is a vital engineering component. It serves as the foundation for the predictable and safe operation of robots. Engineers and factory managers know that investing in a high-quality harness (typically custom-built) results in increased uptime and performance on the production floor.
