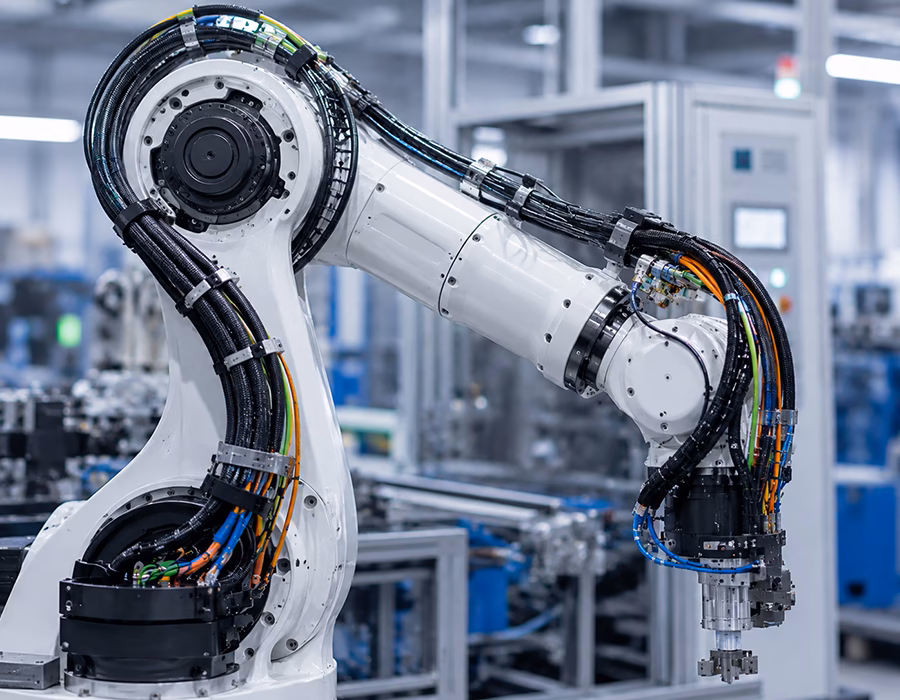

A 6-axis or 7-axis robotic arm never really stops moving, and neither does the wiring inside it. Every rotation twists, pulls, and bends the internal cable at the same time, often across several axes at once and at real speed. A well-built robotic arm wire harness has to absorb all of that simultaneously, cycle after cycle, for years. Standard industrial cable just isn’t built for it — the mechanical stress alone is enough to tear it apart over time.
Here’s where it actually breaks down: pack a hollow joint casting too tightly, or get the pitch layout wrong, and individual wire strands start rubbing against each other every time the arm rotates. That friction fatigues the copper, and fatigued copper snaps strand by strand. Pinch a data line in the same tight space, and you get attenuation or dropped packets on your EtherCAT, Profinet, or encoder lines — the kind of intermittent fault that’s maddening to trace back to a wiring problem instead of a software bug.
| Zone | What It’s Up Against |
|---|---|
| Base & lower joints (Axes 1–3) | Heavy torsional sweeps, high power distribution |
| Wrist & tool joints (Axes 4–6) | Tight bend radii, rapid directional shifts |
| End-of-arm tooling (EOAT) | High-speed data, sensor-line integrity under motion |
Romtronic builds its robotic arm wire harnesses specifically for this, using components rated to survive tens of millions of continuous torsional cycles without signal breakdown.
What a Robotic Arm Wire Harness Actually Needs to Survive
We design around three specific stress points rather than adapting off-the-shelf cable to fit.
1. High-Flex Stranded Conductor Alloys
Standard wire strands lock up and work-harden under repeated twisting, which is exactly the motion an articulated arm produces all day. So we build our dynamic signal and power lines from Class 6 extra-fine stranded copper or copper-tin alloys instead, then coat the strands with slick lubricants and wrap them in smooth PTFE separation tape. That combination lets the inner conductors slide past each other during sharp twisting motions instead of binding, which prevents premature copper breakage.
2. High-Flex Life Cabling, Not Just High-Flex Marketing
Wire bundles routed through a narrow joint see genuinely severe structural twisting, cycle after cycle, for the life of the machine. We build these harnesses using the same approach behind our high-flex life cabling for 7-axis collaborative robots, validated past 20 million continuous flex cycles. That’s not a spec sheet number pulled from a datasheet — it’s the design discipline that keeps electrical continuity flat through years of relentless industrial use.
3. High-Density, Micro-Miniature Connectors
Compact joint housings leave almost no room for bulky interconnects. So we spec high-density, micro-pitch connector systems with positive-locking latches, which shrink total harness volume while keeping every connection gas-tight under repeated vibrational shock.
Articulated Arm Harness Configuration Matrix
| Zone | Core Hazard | Engineering Fix |
|---|---|---|
| Base-to-Shoulder Power Links | Heavy continuous power draw, high thermal buildup, wide torsional sweeps | Large-gauge, high-strand copper in cross-linked, low-friction PUR insulation |
| Elbow & Wrist Joint Control Lines | Tight bend radii, fast acceleration spikes, rubbing against casting walls | Ultra-flexible control bundles under dynamic, abrasion-resistant woven sleeving |
| Encoder & Vision Sensor Feedback | High-speed signal degradation, EMI from adjacent servo motors | Low-capacitance twisted-pair cable under a 360° floating tinned-copper braided shield |
| End-of-Arm Tooling (EOAT) Breakouts | Cutting-fluid exposure, metallic dust, sudden tool-change pulling force | IP67-rated overmolded connectors wrapped in oil-resistant, self-extinguishing jacketing |
Two Failures We See Most Often on the Factory Floor
Strand fatigue that looks like a software glitch. Pack a generic wire bundle into a rotating joint, and constant twisting forces the inner copper cores into tight knots over time. Strands fracture one at a time under that strain, and to the robot controller, those microscopic breaks look identical to intermittent signal drops — sudden tracking errors, position drift, unexplained halts. Nobody’s first guess is “it’s the wiring,” which is exactly why it costs so much downtime to diagnose. We design this failure mode out from the start with concentric-twist wire layouts and core-padding materials that spread mechanical strain evenly across the whole bundle instead of letting it concentrate on one weak spot.
Crimp heat buildup that melts a connector housing. Repetitive axis movement puts constant mechanical stress on every crimp termination. A marginal crimp lets strands gradually back out of the contact zone, raising resistance at the exact point current is trying to pass through—and that resistance turns into heat, sometimes enough to melt the housing around it. For every high-vibration build, we weigh ultrasonic welding against mechanical crimping rather than defaulting to one method everywhere, and we run real-time automated crimp-force monitoring on every termination during production to catch a marginal crimp before it ships.
Extreme-Temperature Resilience and Quality Validation
Robotic arms don’t always run in a climate-controlled cell. Plenty operate near hot foundry equipment, or inside freezing cold-storage warehouses, and standard plastic insulation cracks or turns brittle fast under either extreme. Our approach to selecting materials for extreme-temperature harnesses keeps structural elasticity intact across that whole range, not just at room temperature.
Every harness goes through the same validation sequence before it ships:
Inbound Component Verification → Real-Time Automated Crimp Checking → Three-Stage Quality Testing Gate → Zero-Defect Shipment
| Gate | Test | What It Confirms |
|---|---|---|
| 1 | Post-crimp optical inspection | Crimp geometry and contact placement |
| 2 | High-voltage dielectric test | Insulation integrity at rated voltage |
| 3 | Mechanical pull & continuity test | Termination strength and circuit continuity |
Every harness layout and grounding joint follows artistry criteria under IPC/WHMA-A-620. We also verify every build through our independent in-house testing lab under ISO 9001-controlled processes. Our lines run High-Mix, Low-Volume (HMLV) production, so a niche or bespoke arm configuration doesn’t get stuck behind a standard minimum order quantity.
FAQ
A: Class 6 extra-fine stranded copper or copper-tin alloys, coated with slick lubricants and wrapped in PTFE separation tape so strands slide instead of binding during rotation.
A: Our high-flex life cabling design is validated past 20 million continuous flex cycles, and the same discipline applies to base, wrist, and EOAT wiring.
A: Strand fatigue from concentrated mechanical strain. Concentric-twist layouts and core-padding materials spread that strain across the whole bundle instead of one weak point.
A: Workmanship criteria aligned with IPC/WHMA-A-620, verified through a three-stage gate: post-crimp optical inspection, high-voltage dielectric testing, and mechanical pull/continuity testing.
A: Yes. Our lines are set up for High-Mix, Low-Volume production, so a bespoke or prototype arm build isn’t held to a standard minimum order quantity.
